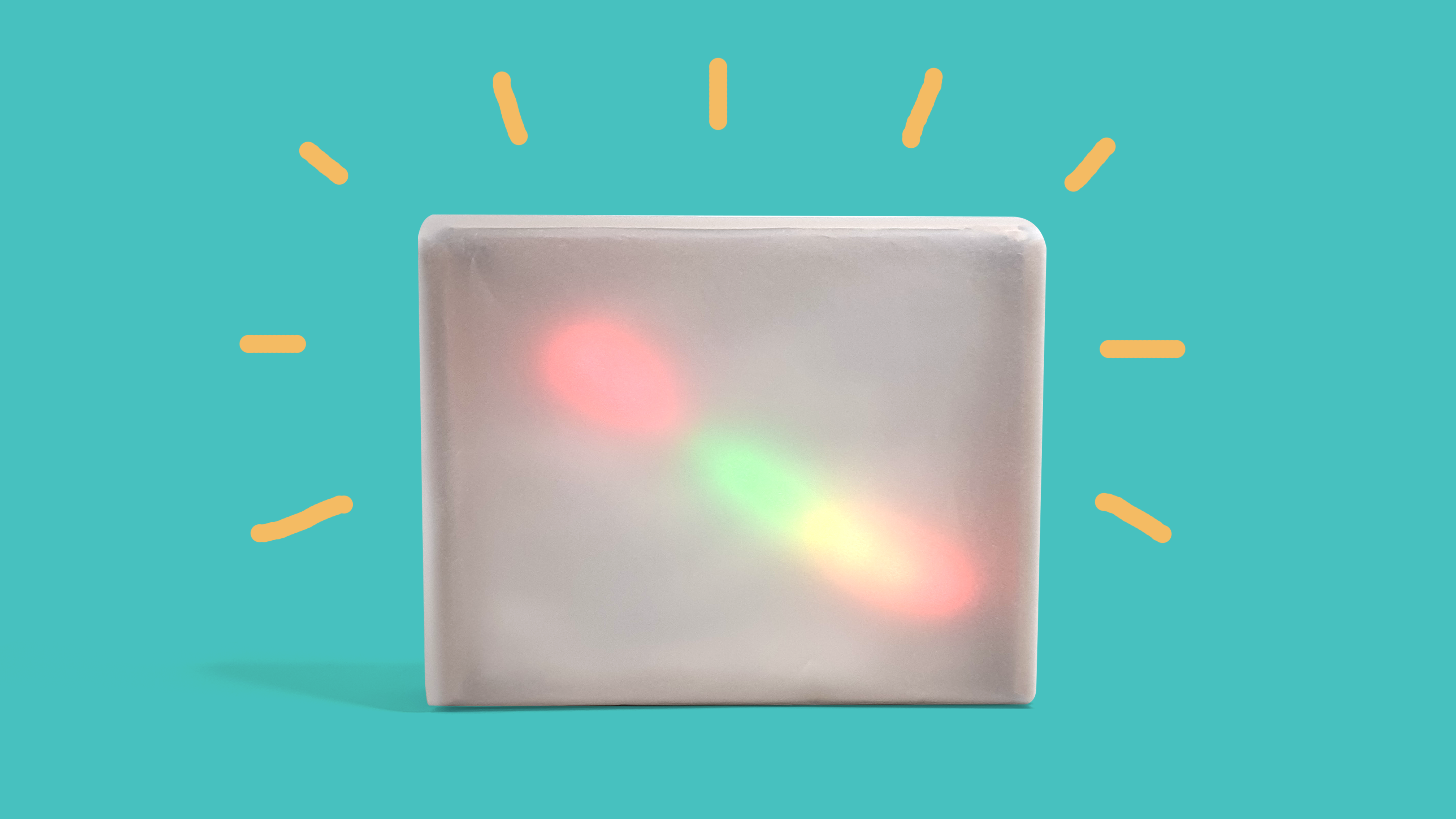

Micro:bit Lightbox

Ever wanted a lightbox that could change colors? You can build one now with simple materials, micro:bit and a light strip!


You'll need

  • 1 x Micro:bit
  • 1 x Battery pack
  • 1 x NeoPixel LED strip
  • 1 x Small box
  • 1 x Glue Stick / Sticky Tape
  • 1 x Cutting board
  • 1 x Pen Knife
  • 1 x Ruler
  • Tin Foil
  • Tracing paper

Step 1

Instructions

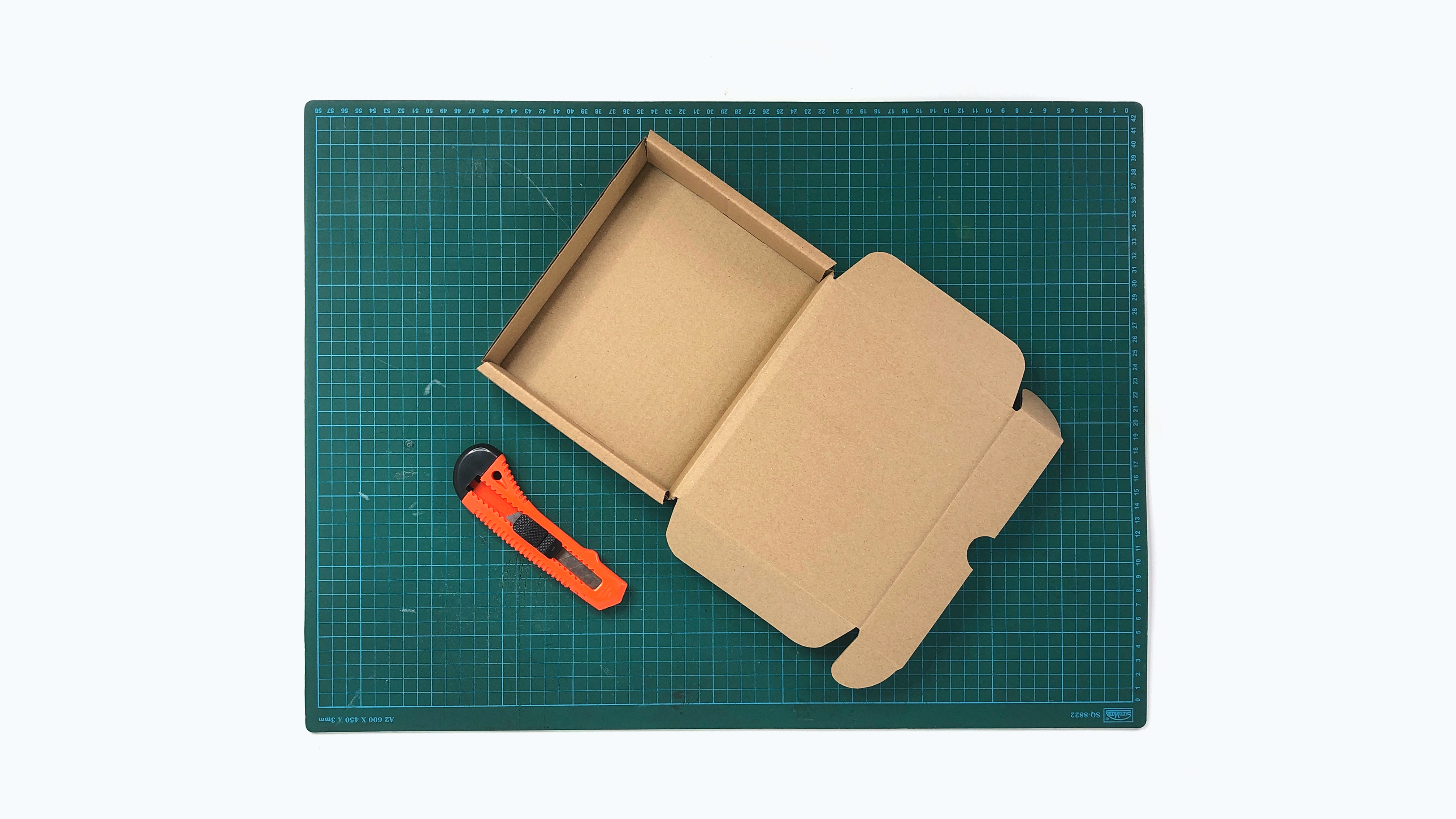

Preparing the box

(a) Depending on the type of box, the flap might have to be removed. Ideally, it should look like the picture.




Materials

1 x box


Step 2

Instructions

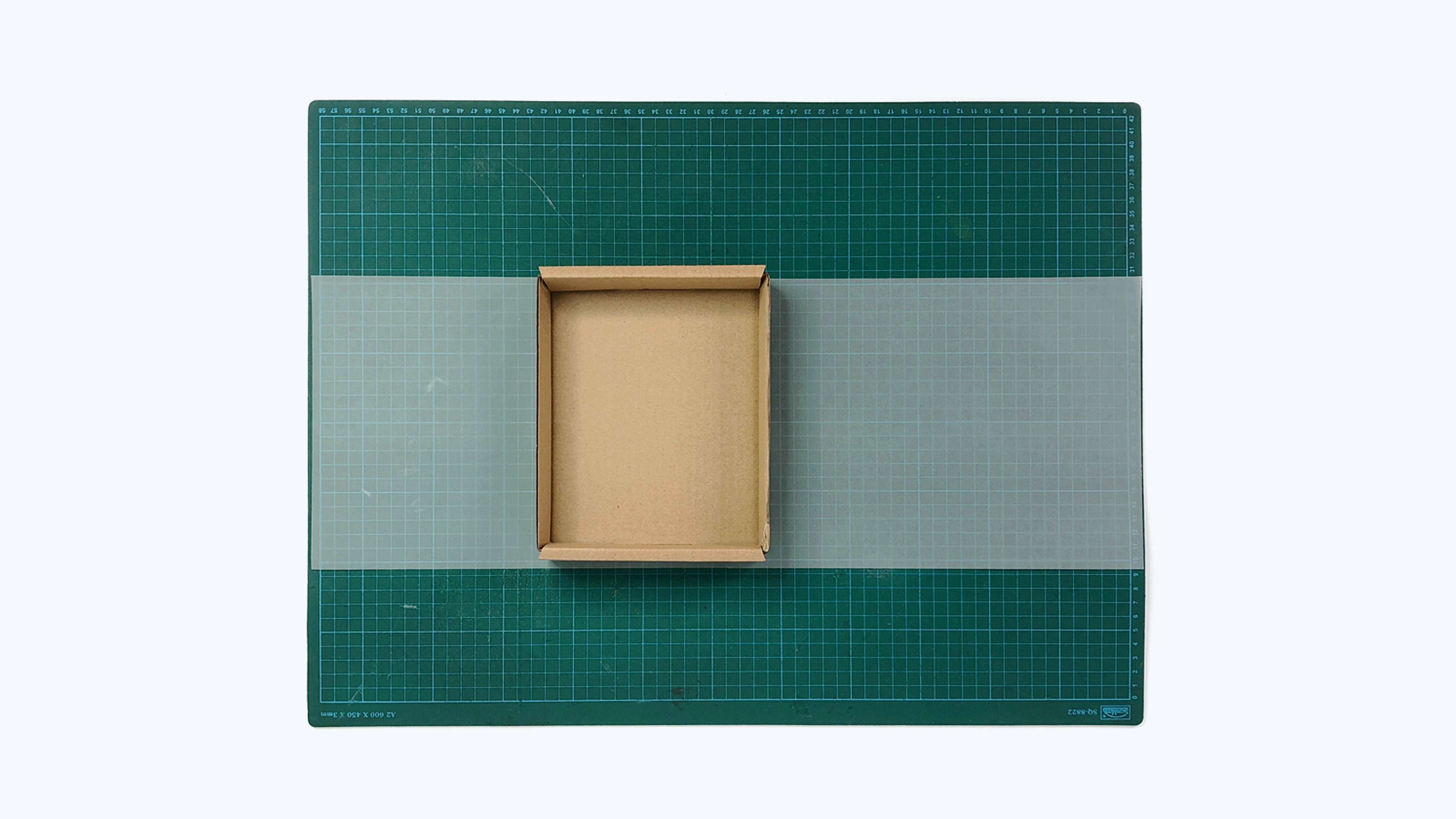

Preparing the sleeve

(a) Cut a strip of tracing paper the width of your box. It needs to be long enough to wrap around the box to make a translucent sleeve.




Materials

1 x tracing paper


Step 3

Instructions

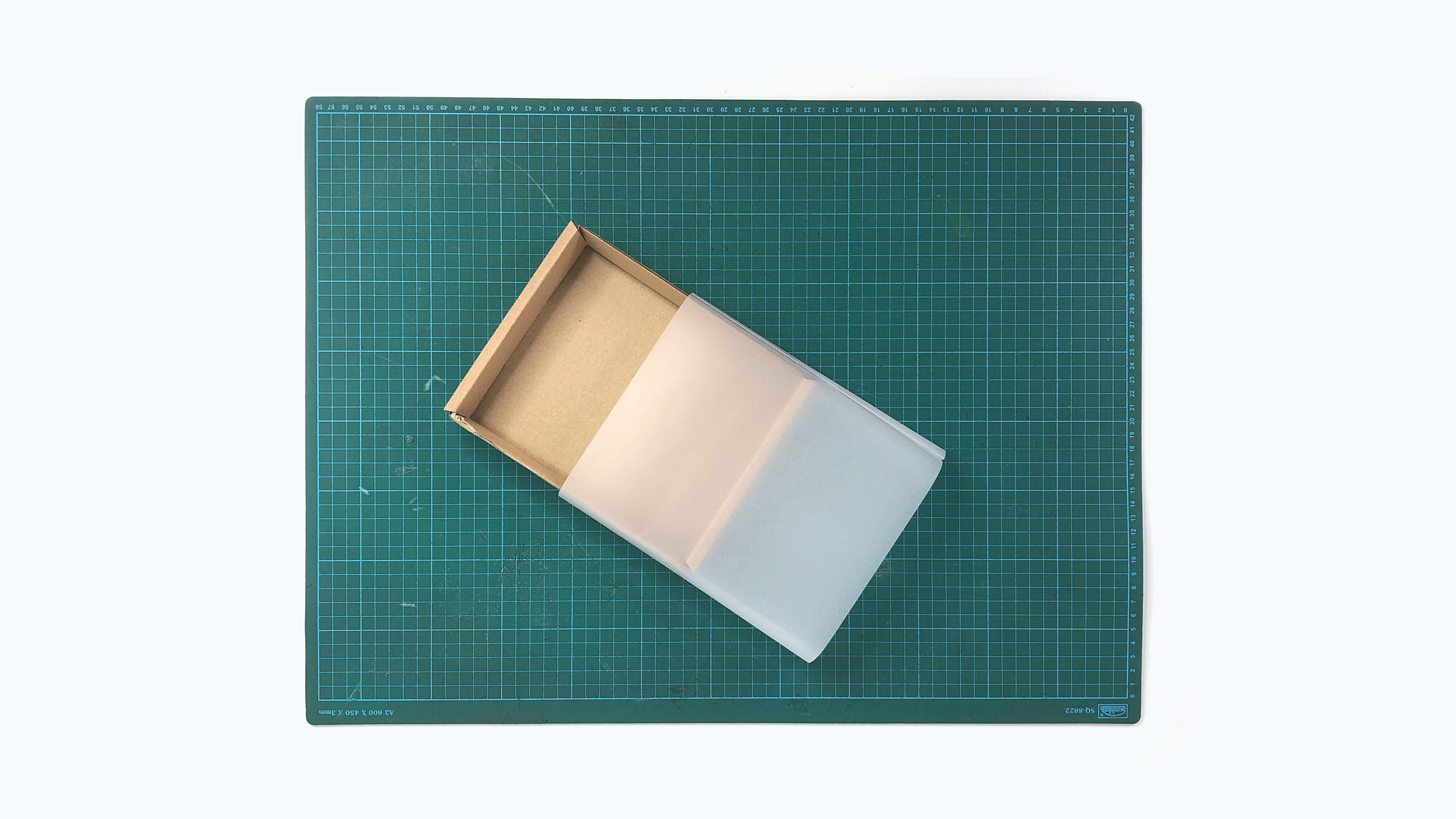

Making the sleeve

(a) Make a crisp fold around the corners and fold the tracing paper around to make the sleeve.

(b) Glue/Tape overlapping ends together.


Step 4

Instructions

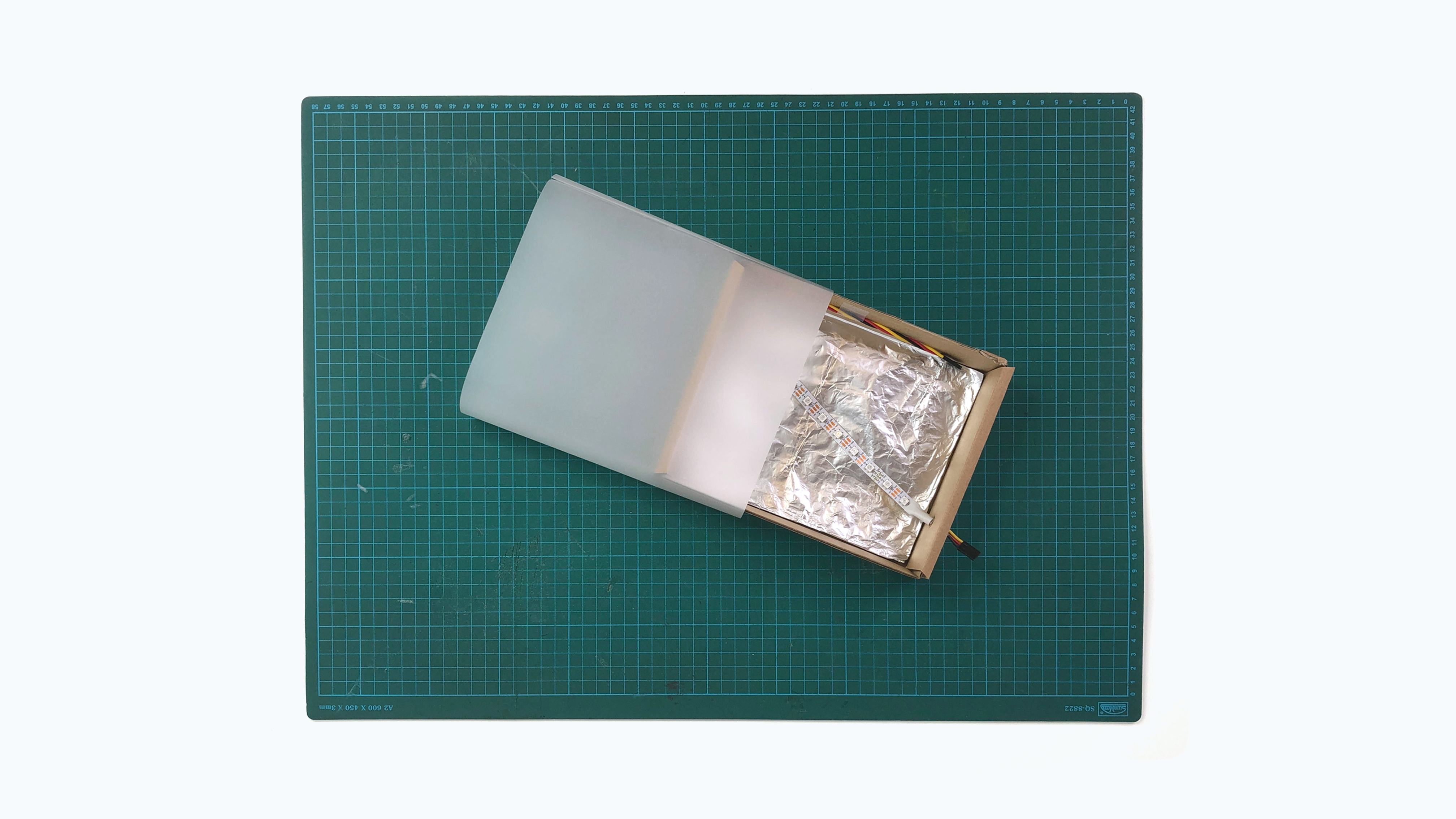

Lightbox?

(a) Line the back of the box with aluminium foil to let the light reflect off.




Materials

  • aluminium foil

Step 5

Instructions

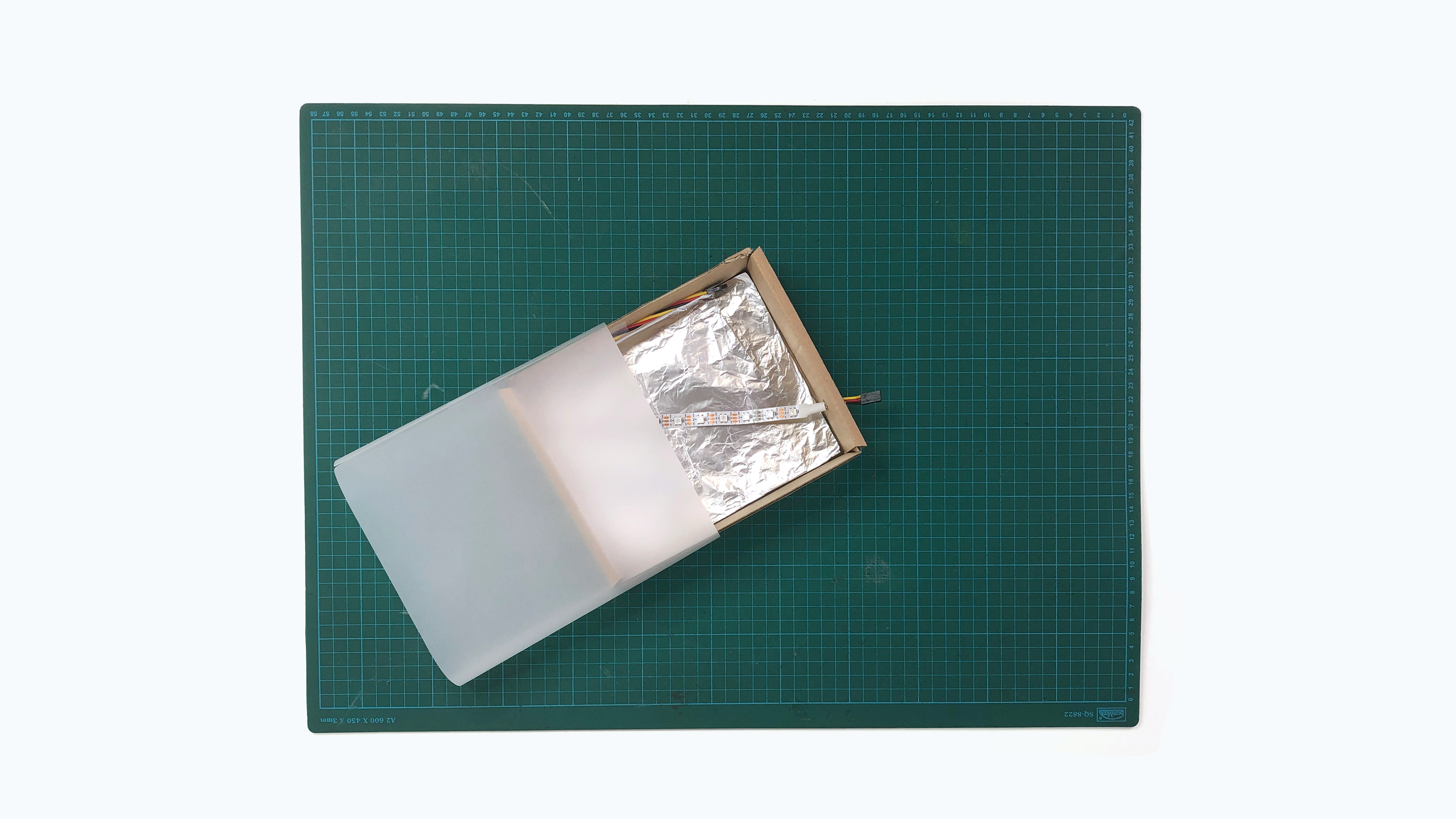

Inserting the light strip

(a) Make a hole on one side of the box big enough for the NeoPixel strip, ring or compatible LED strip and thread it through. Let the female leads dangle outside the box.




Materials

1 x Neopixel light strip


Step 6

Instructions

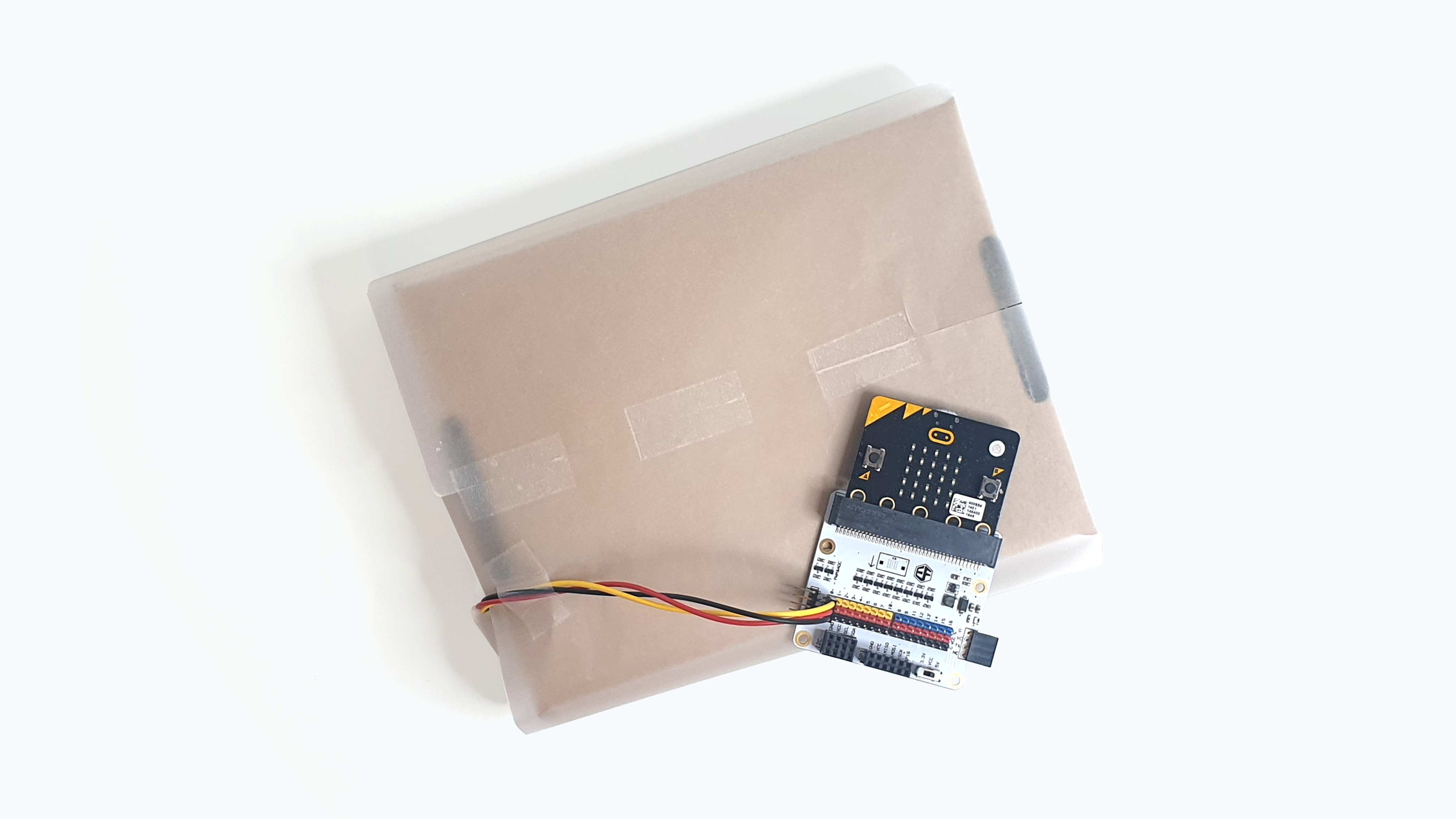

Plugging in
(a) Plug in the neopixel strip to pin0 of the breakout board




Materials

  • 1 x Breakout board
  • 1 x Micro:bit

Step 7

Instructions

Coding it up

(a) Go to the microbit makecode editor

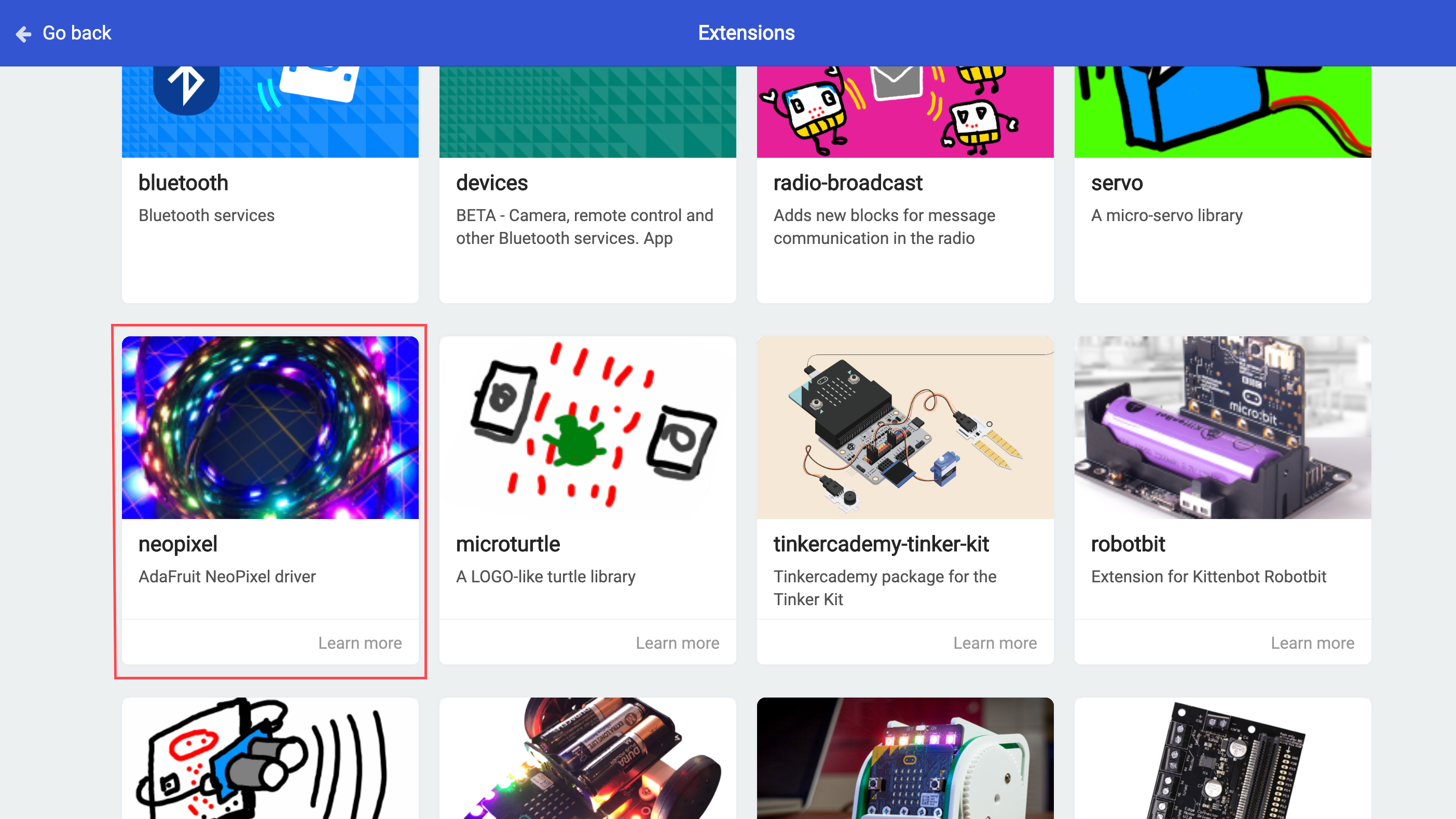

(b) Add the NeoPixel library to the project.


Step 8

Instructions

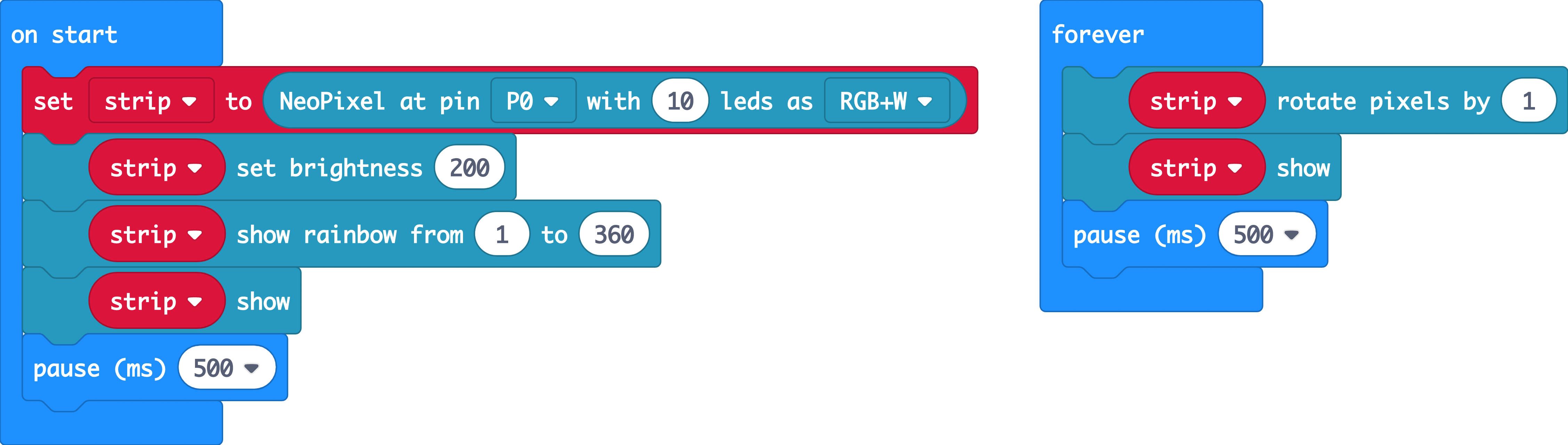

Coding it

(a) Drag and drop 'set strip to neopixel....' block into the start block. Change the pin to PIN0 (or whichever pin you've plug the light strip to) and change the number of light pixels

(b) Drag a show rainbow into onstart block

(c) Add a pause block inside onstart

(d) In a forever block, drag in a "rotate pixels by 1" to cycle through the rainbow colors


Code and References

Completed this tutorial?

Spread the word! Let's get this trending on social media with #letsgethacking #Micro:bitLightbox
