Space Shooter

Create a simple space shooter game where you have to shoot and avoid falling projectiles.


You'll need

1 x Micro:bit 1 x Micro USB Cable 1 x Breakout Board 1 x ADKeypad

Step 1

Instructions

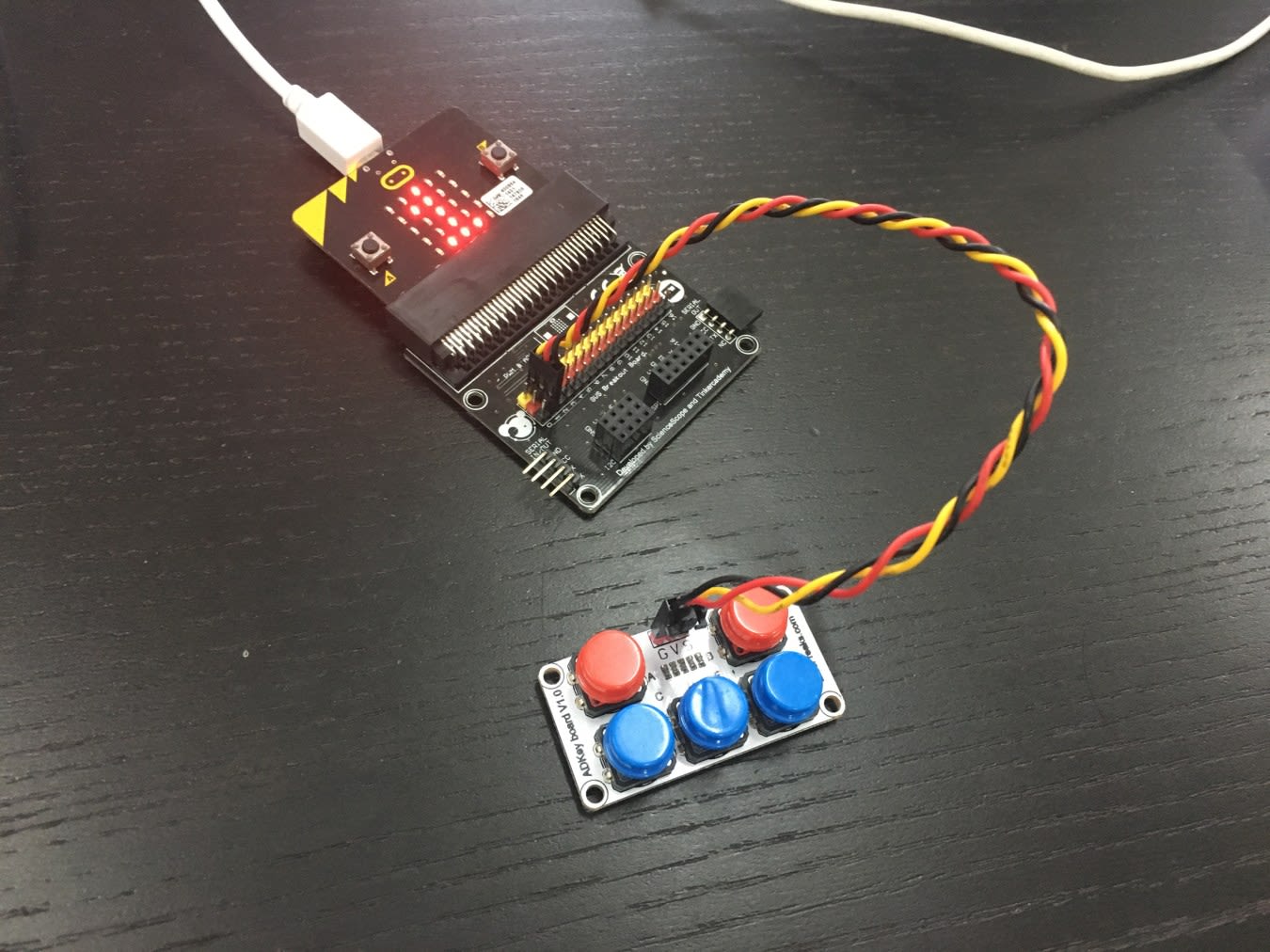

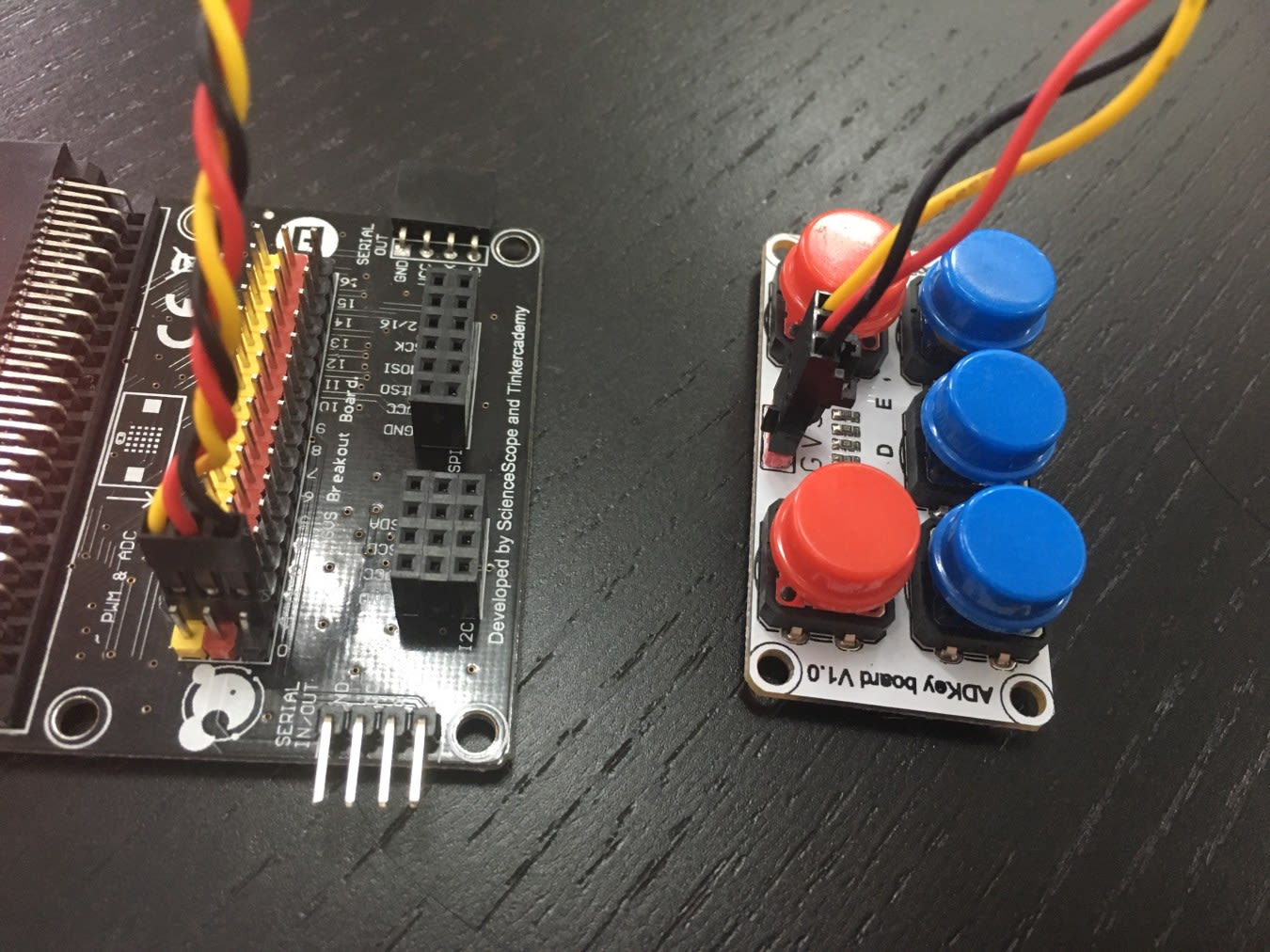

Plug the Micro:bit into the Breakout Board. Then, connect the ADKeypad to pin 1 (but pin 0 works too if you want) of the Breakout Board, making sure the colours of the wires match the colours of the pins.




Materials


Step 2

Instructions

Go to makecode.microbit.org, open the advanced tab and click on Add Package. Then type "tinker kit" in the search box and click on the package to add it. You should now have the Tinkercademy and OLED packages.




Materials


Step 3

Instructions

In this project, we will be using the JavaScript editor. Click the switch on the top of the screen to switch to it.




Materials


Step 4

Instructions

First and foremost, we need to initialise all our variables we will be using. Follow the code in the picture. Alternatively, if you don't want to type out all this code, it is provided in the links.
Now I'll explain each variable, you can go to the next step if you don't need it. playerscore keeps track of the player's current score, noalien is to check if there are any aliens left on screen, hi for your highest score, gamestart to keep track what state the game is in, destroyedpos is an array that stores where the player collided with an alien, aliens is an array that stores the positions of the aliens, shots is an array that stores the positions of the player's shots, pos to keep track of the player's position, toprow is to check if there is an alien in every LED on the top, and 2 temporary variables. You can use any name you want for any of these, just remember which one you used for what.




Materials


Step 5

Instructions

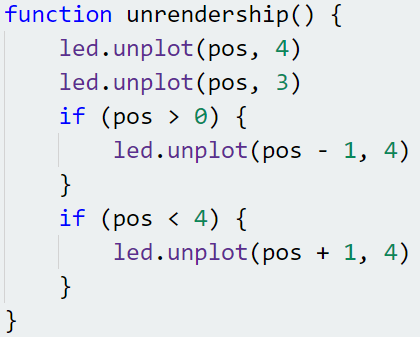

Next, add this function shown in the picture. This function turns off the LED that represents the ship and will help with moving the ship.




Materials


Step 6

Instructions

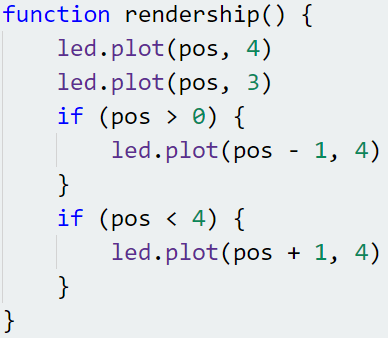

Then add this function shown in the picture. This function runs after the unrendership function to change the position of the ship.




Materials


Step 7

Instructions

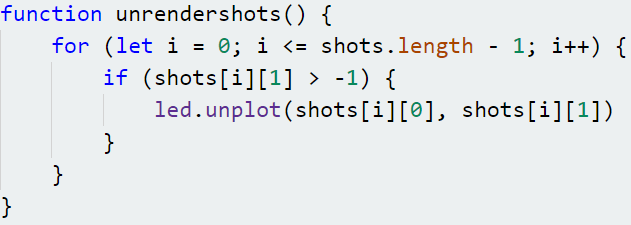

Next, add the code in the picture. This function turns off the LED that represents the player's shots, which will help with moving the shot across the screen.




Materials


Step 8

Instructions

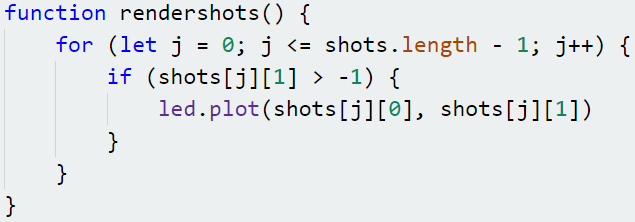

Then add this code in the picture. This function lights up the LED which represents the player's shot after unrendershots updates the shot's position.




Materials


Step 9

Instructions

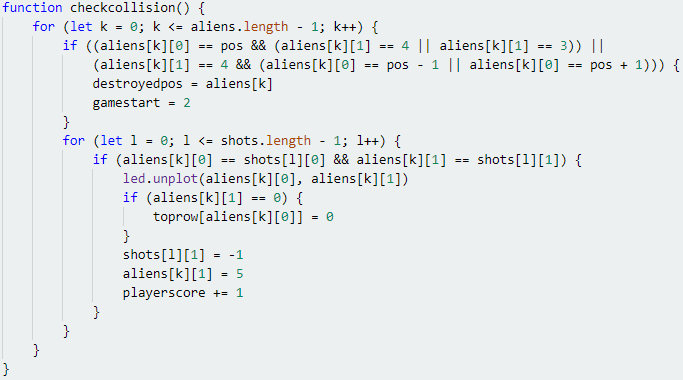

Now we are going to make a function that constantly checks for collisions between the player and the aliens and the aliens and the shots. Follow the code in the picture. The next bit is an explanation, again you can skip this if you don't need it.
First, the game needs to check if there is an alien in the second last and last row of LEDs, as well as if it is beside or on the ship's position, which is the first 'if'. If there is an alien, the destroyedpos will be updated to the position of the alien and gamestart will be changed to 2 to end the game.
Next, the game needs to check for the player and the player's shots. Both of these only occupy one LED so we only need to check if their positions are the same. However, since the player can shoot multiple bullets, we need to use the 'for' loop to check each shot and each alien. If they are there in the same spot, the LED in that spot turns off and set toprow to 0. Then we change the vertical position of the shot to -1 and the alien to 5 where we will remove them off-screen.
Lastly, we increase the player's score by 1.




Materials


Step 10

Instructions

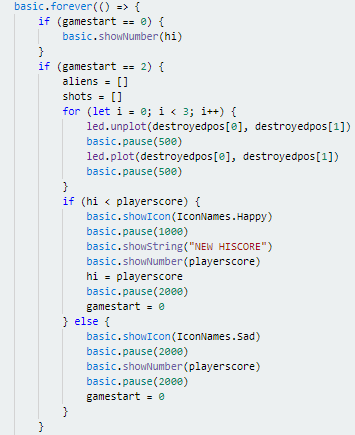

Whew! Alright, we're finally done with making functions. Now we can start putting them to use. You should know the 'forever' block in the block editor, basic.forever(()=>{} is the Javascript version. Follow the code in the picture. This portion makes it so if gamestart is 0, the micro:bit shows the current highscore and if gamestart is 2, the game had just ended and the LED position where the player was destroyed will blink three times. If the player beats the highscore, it will show a happy face, otherwise it will show a sad face. Then it will show the player's score and set gamestart to 0.




Materials


Step 11

Instructions

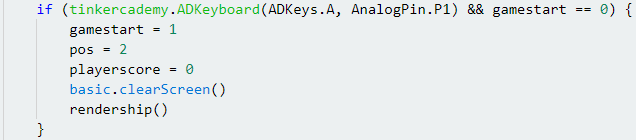

To start the game, we have to check for the player pressing the A key on the ADKeypad while gamestart is 0. This will change gamestart to start the game, move the player back to the middle column, set the score back to 0, clears the screen, then calls the function that draws the ship.




Materials


Step 12

Instructions

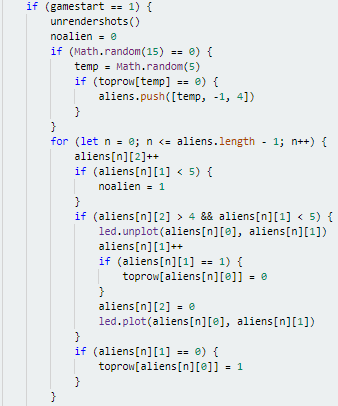

Now for the game (finally)! First, we turn off all LEDs representing the shots to move them upwards by 1. Then we use the Math.random() function to randomly determine if an alien should appear on this frame. Increasing the number in the bracket will make the chance less and decreasing it makes it more, but in this example we are using 15 to give it a 1 in 15 chance to appear. However, we need to check if there is an alien already in that spot or they will overlap one another. Then we will move each alien down by 1 every 5 times the forever loop runs. If an alien is in the top row, toprow of that column will be set to 1. Otherwise, it will be 0.




Materials


Step 13

Instructions

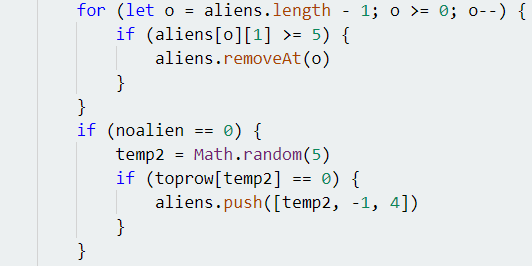

Next, we will check if an alien is outside the screen and, if it is, remove it from the aliens array. Then if there are no more aliens on the screen, we will spawn an alien in as per usual.




Materials


Step 14

Instructions

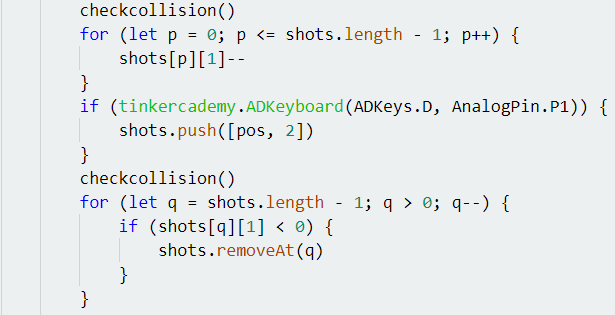

After updating the aliens' positions, we will call the checkcollision() to check for collisions, then update the positions of any shots. Then we spawn a shot if the player hits D on the ADKeypad. Lastly we remove any shots that are off-screen.




Materials


Step 15

Instructions

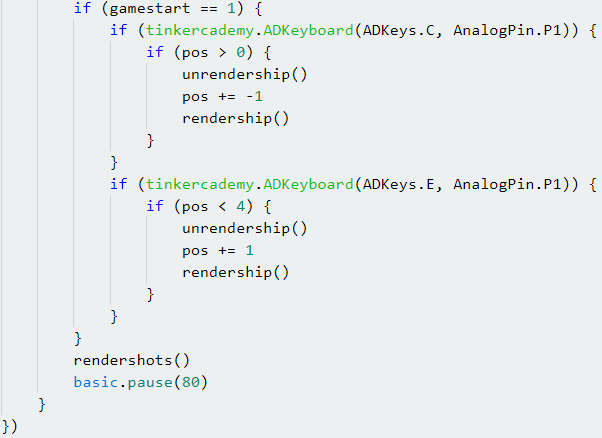

Last but not least, we check if the player has pressed the C or E key on the ADKeypad and move the ship accordingly. Then we render any shots the player has fired and set a pause of 0.08 seconds (80 ms) between each loop to make the game run at a playable speed.




Materials


Step 16

Instructions

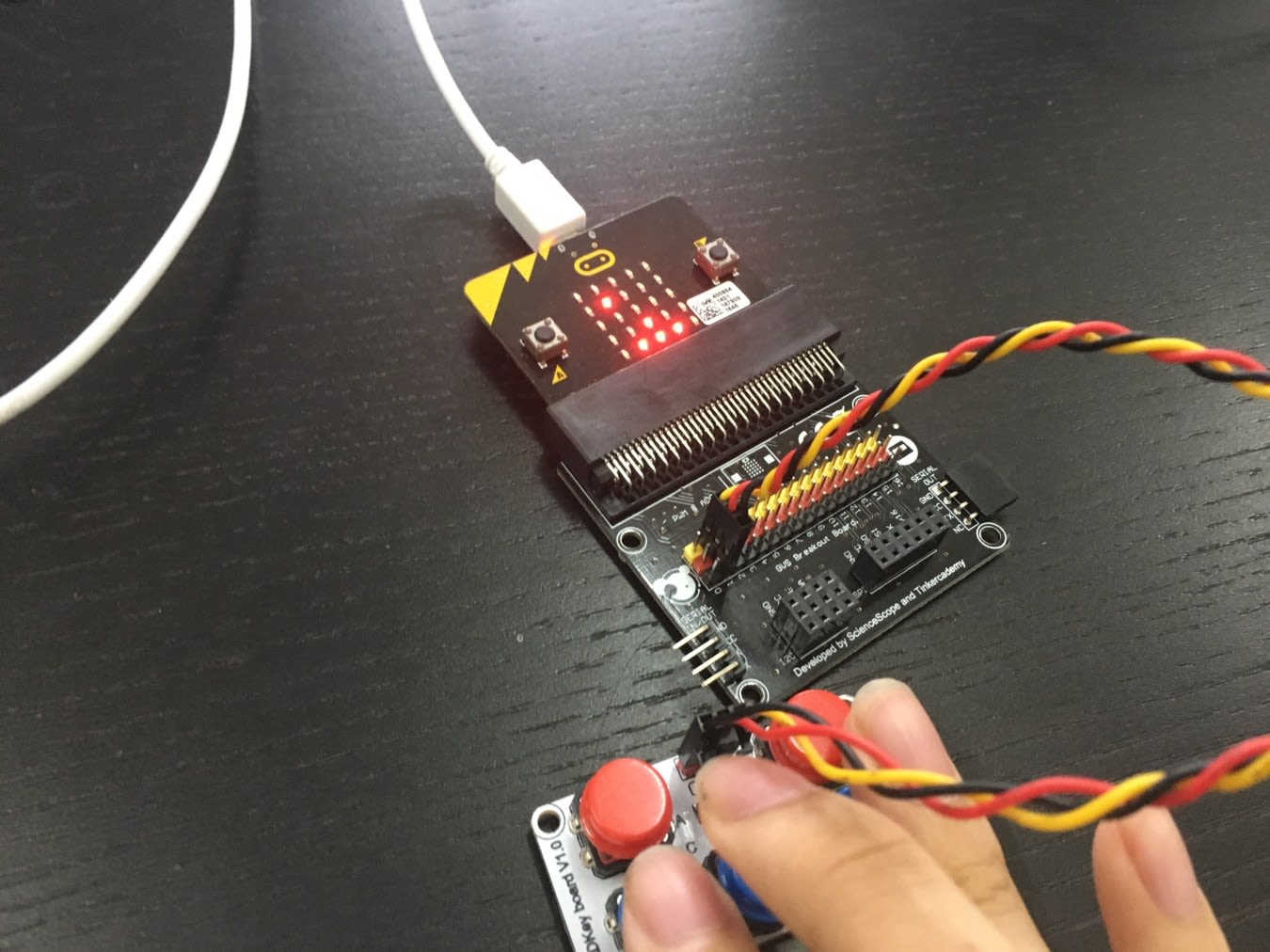

Voila! Now you have a working space shooter game for your micro:bit! Remember that it's C to move left, E to move right and D to shoot down those aliens.
